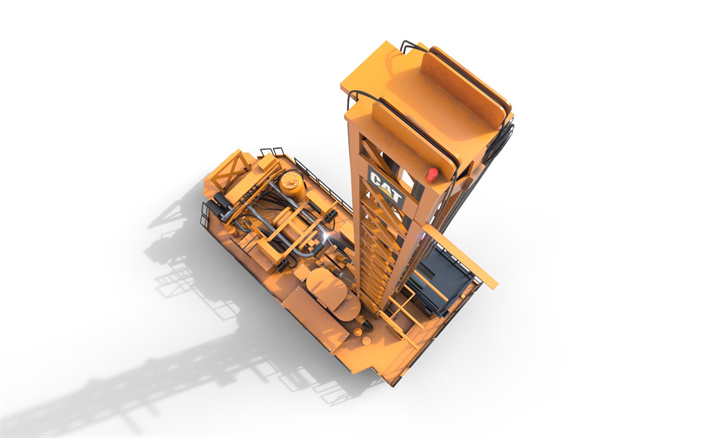

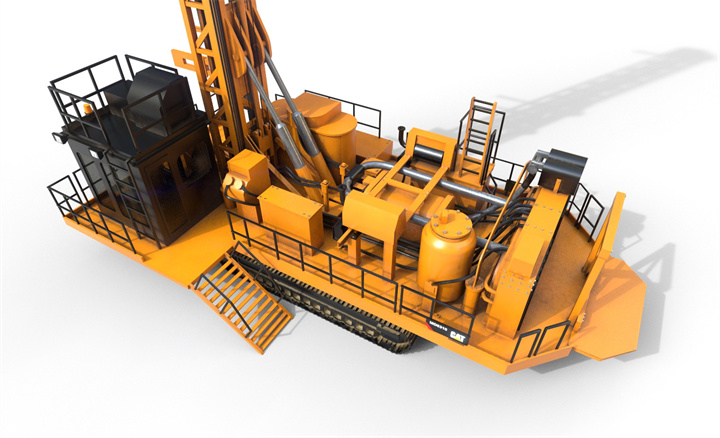

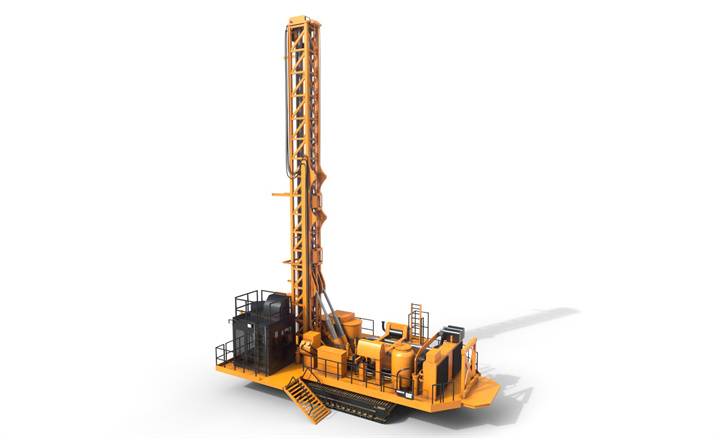

key Specs
Pull-Down Capacity Up to 39 009 kg (86,000 lb)Hole Diameter229-311 mm (9-12.25 in) Engine Cat® C32B
Pull-Down Capacity Up to 39 009 kg (86,000 lb)
13.7 m (44.9 ft) Mast - Hoist Speed 122.7 ft/min
17.5 m (57.4 ft) Mast - Hoist Speed 122.7 ft/min
Emissions (Equivalent to Tier 2): Engine C32B @ 1,800 rpm
13.7 m (44.9 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Multi Pass Depth Down to 74.6 m (Down to 244.9 ft)
17.5 m (57.4 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Multi Pass Depth Down to 47.9 m (Down to 157.4 ft)
17.5 m (57.4 ft) Mast - Pulldown Capacity Up to 39 009 kg (Up to 86,000 lb)
17.5 m (57.4 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Single Pass Depth 57.4 ft
13.7 m (44.9 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in)
Angle Drilling Vertical to 30° (in 5° increments)
17.5 m (57.4 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in)
17.5 m (57.4 ft) Mast - Bit Load - Single Pass Up to 42 149 kg (Up to 92,922 lb)
13.7 m (44.9 ft) Mast - Hoist Capacity Up to 22 113 kg (Up to 48,750 lb)
Compressor - Rotary Drilling (1) 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi)
Compressor - Rotary Drilling (2) 73.6 m³/min (2,600 ft³/min) @ 7.6 bar (110 psi)
13.7 m (44.9 ft) Mast - Pulldown Capacity Up to 39 009 kg (Up to 86,000 lb)
13.7 m (44.9 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Single Pass Depth 44.9 ft
Emissions (U.S. EPA Tier 4 Final): Engine C32B @ 1,800 rpm
Compressor - DTH Drilling 42.2 m³/min (1,500 ft³/min) @ 34.4 bar (500 psi)
17.5 m (57.4 ft) Mast - Hoist Capacity Up to 22 113 kg (Up to 48,750 lb)
13.7 m (44.9 ft) Mast - Bit Load - Single Pass Up to 41 165 kg (Up to 90,753 lb)
Emissions (U.S. EPA Tier 4 Final): Power Rating ISO 14396 1007 hp
Emissions (Equivalent to Tier 2): Power Rating ISO 14396 1031 hp
