CAT-336D2

Whatsapp Me

Inspection Table

Overview

1. Basic Information
Brand/Model: CAT 336D2
Type: Crawler Hydraulic Excavator
Application: Widely used in construction, mining, and earthmoving projects

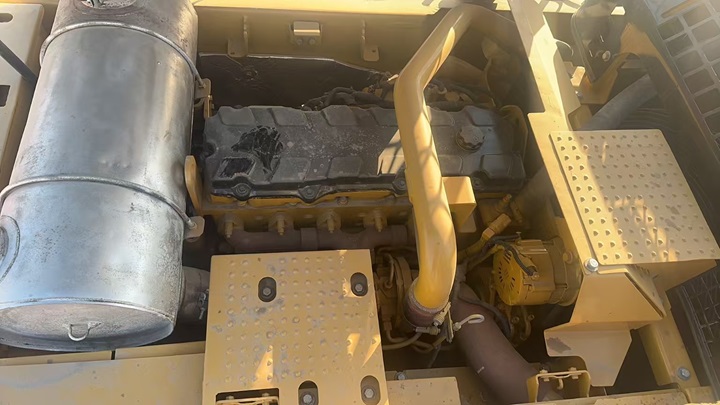

2. Engine
Engine Model: CAT C7.1 ACERT
Rated Power: 213 kW (286 HP) @ 1,800 rpm
Fuel System: High-pressure common rail
Emission Standard: Tier 3/Stage IIIA compliant

3. Performance
Operating Weight: Approx. 34,000 kg
Max Digging Depth: 6,900 mm
Max Digging Height: 10,250 mm
Max Dumping Height: 7,200 mm
Bucket Capacity Range: 1.1-2.5 cubic meters

4. Hydraulic System
Maximum Flow of Main Pumps: 570 L/min
Maximum Operating Pressure: 35 MPa
Swing Speed: 10.3 rpm

5. Dimensions & Configuration
Transport Length: 11,200 mm
Transport Width: 3,190 mm
Transport Height: 3,360 mm
Track Length: 5,100 mm
Track Shoe Width: 600 mm

6. Other Specifications
Fuel Tank Capacity: 620 liters
Hydraulic Tank Capacity: 290 liters
Cooling System Capacity: 45 liters
